Small Fiber Optic Tools Fiber Optical Core To Core Digital Alignment Fusion Splicing Machine

Name: Small Fiber Optic Tools Fiber Optical Core To Core Digital Alignment Fusion Splicing Machine
Brand: domectic
Price: 1 USD

Wholesale Small Fiber Optic Tools Fiber Optical Core To Core Digital Alignment Fusion Splicing Machine from china suppliers

Brand Name : domectic

Model Number : F-97

Certification : CE,ISO

Place of Origin : China

MOQ : 1

Price : 1~30

Payment Terms : T/T, Western Union, MoneyGram, paypal

Supply Ability : 1000000

Delivery Time : 7 working days

Packaging Details : export packing

product name : F-97 smal handheld Fiber Optical core to core digital alignment Fusion Splicing Machine

Splicing program : 40 groups

Typical splicing time : 8 seconds

Diameter of coating : 160 – 900μm

Contact Now

F-97 smal handheld Fiber Optical core to core digital alignment Fusion Splicing Machine

Features

●Handheld, Small, Light

●Industrial standard screen

●Various colors are available

●Core to core digital alignment

●8s splicing stime, 26s tube heating time

●5800mAh and pluggable Li-battery, Typical 200 cycles

●ARC calibrated by temperature and air pressure automatically

●Apply to bare fibers, indoor cables and jumper wires splicing

Applicable fiber	SM(G.652), MM(G.651), DS(G.653), NZDS(G.655), others(including G.657)
Fiber count	Single
Applicable fiber dimensions	Cladding diameter: 80 -150μm, Coating diameter: 160 – 900μm
Typical splice loss	0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS)
Return loss	>60db
Fiber cleaved length	10-16mm (coating diameter< 250μm ), 16mm(coating diameter: 250-1000μm )
Splicing program	40 groups
Operate mode	Manual, Automatic
Auto-heating	Available
Typical splicing time	8 seconds
Tube heating time	26 seconds for 60mm and 40mm shrinkable sleeves
Fiber view magnification	250X(X or Y view), 125X(X and Y view)
Viewing method and display	2 CMOS cameras, 4.3 inch color LCD monitor
Storage of splice result	4000 results
Loss evaluation	Available
Tension test	1.8-2.2N
Interface	GUI menu interface, easier operation
Battery capacity	5800mAh, typical 200 cycles(splice and tube heat), pluggable inner Li-battery
Power supply	Adaptor, input: AC100-240V(50/60HZ)
Electrode life	More than 4000 ARC discharges, can be replaced conveniently
Terminals	USB 2.0 port, for uploading splice results and upgrading software
Operating condition	Altitude: 0-5000m, Humidity: 0-95%, Temperature: -10℃～+50℃;Wind speed: max 15m/s
Dimension	149mm(L)x120mm(W)x127mm(H)
Weight	1.9kg including battery
Package	Packed in carton with protection foam, Size 43cm37cm27cm, G.W.6.5kg

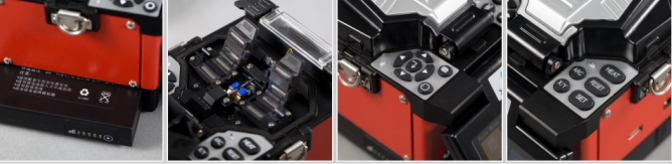

Details Display

Small Fiber Optic Tools Fiber Optical Core To Core Digital Alignment Fusion Splicing Machine

splicing display

Small Fiber Optic Tools Fiber Optical Core To Core Digital Alignment Fusion Splicing Machine

Additional tools

Small Fiber Optic Tools Fiber Optical Core To Core Digital Alignment Fusion Splicing Machine
